THREE AXIS TURNTABLE WITH CHAMBER
DESCRIPTIONS

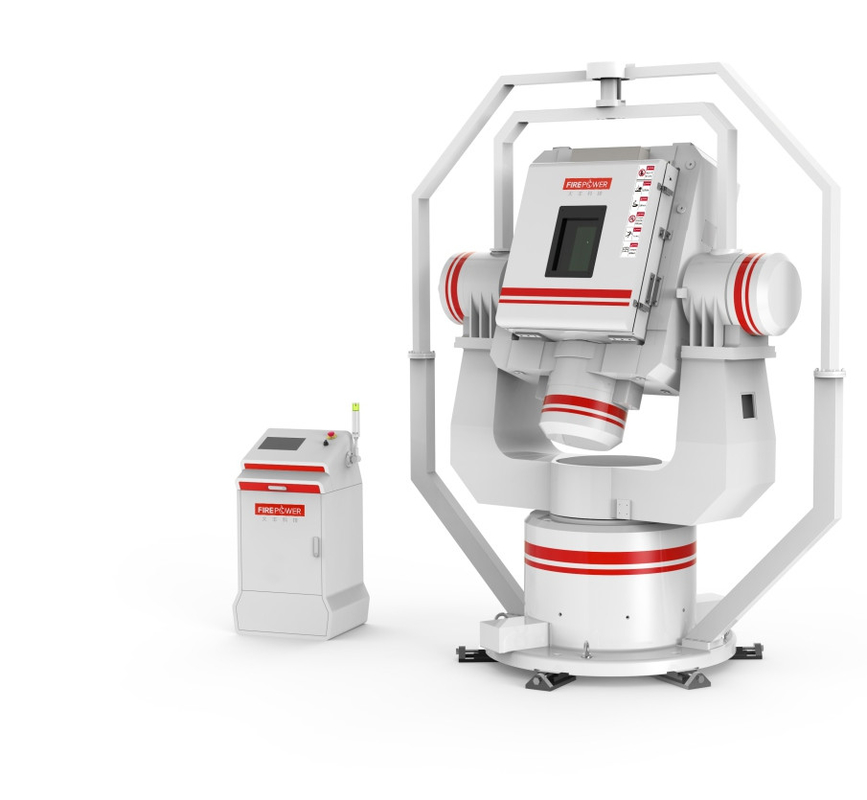

Three-axis turntable with temperature chamber series is a kind of three-axis turntable equipment that can meet the full temperature test . It can generate motion excitation such as angular position , angular rate and angular acceleration in three directions to realize the test of the measured parts such as gyro , inertial measurement device and accelerometer.
The turntable is composed of four parts: mechanical body, temperature control box , electrical measurement and control cabinet ,
compressor and pipe support . The machine body is designed as a three-axis U-U-T type turntable , which is composed of four parts: base , outer frame shafting , middle frame shafting and inner frame shafting.
| Index |
3FV300-W |
|
| Maximum load weight |
30 |
Kg(Optional) |
| Table size |
Φ300 |
mm |
| Table height |
400 |
mm |
| Rotation accuracy |
±1~3 |
″ Optional) |
| Angula position range |
±0〜 ±360 |
° |
| Angula position accuracy |
±1~3 |
″ Optional) |
| Angular resolution |
0.0001 |
° |
| Angular rate range |
0.001〜10000 |
°/s |
| Angular rate accuracy |
hω＜1
1<ω＜10
10<ωness
|
|
| Speed smoothness |
1 × 10 -3
1 × 10 -4
5 × 10 -5
|
1° Average
10° Average
360 ° Average
|
| Maximum angular acceleration |
Inner10000 |
°/s2 customizable |
| Middle3000 |
| Outer2000 |
| Rate resolution |
0.0001 |
° |
| Slip ring number |
10~80 |
Optioanl |
| System bandwidth |
5~ 100Hz |
Hz(Optional) |
| Slip-ring voice |
0.03 |
V |
| Tank range |
-60~+100 |
mT |
| Tempe. control accuracy |
±0.5 |
℃ |
