Home > products > FPV Drone Kit > LOONG F2-10 Carbon Fiber UAV Drone with 10kg Lift Capacity

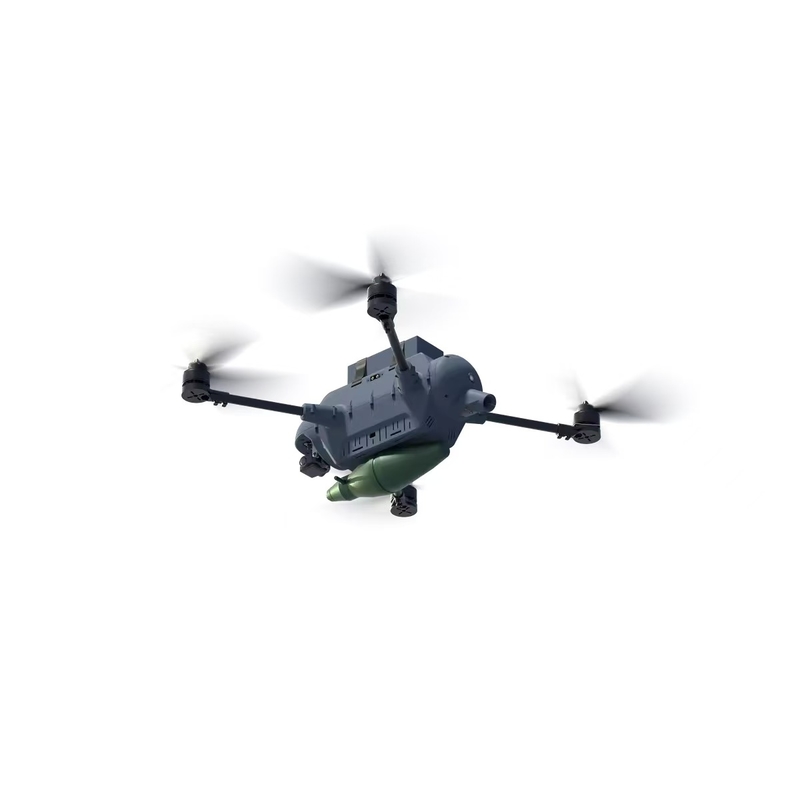

LOONG F2-10 Carbon Fiber UAV Drone with 10kg Lift Capacity
LOONG F2-10 Carbon Fiber UAV Drone with 10kg Lift Capacity
LOONG F2-10 Carbon Fiber UAV Drone with 10kg Lift Capacity

LOONG F2-10 Carbon Fiber UAV Drone with 10kg Lift Capacity

Product Details

Brand Name: MMC

Certification: ROHS

Model Number: Fiber Optic Combat UAV LOONG F2-10

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 20000pcs/Mouth

Get Best Price

Product Details

Product Description
Product Details
Highlight:

FPV drone kit carbon fiber

,

FPV drone magnesium alloy frame

,

FPV drone IP54 waterproof

Mapping Frequency:
2.4GHz
Cruise Speed:
0~15m/s
Arm Box Size:
800*630*380mm
Main Material:
Carbon Fiber+Magnesium Aluminum Alloy+Plastid
Max. Descent Speed:
Default 2m/s (max. 3m/s)
Onboard Computer(optional):
Support Secondary Development Of Image Processing, Video Analysis, Edge Computing Al Algorithms
Protection Level:
IP54
Expand Max. Size:
2190*2415*560mm (With Paddle)
Mapping Frequency:
2.4GHz
Cruise Speed:
0~15m/s
Arm Box Size:
800*630*380mm
Main Material:
Carbon Fiber+Magnesium Aluminum Alloy+Plastid
Max. Descent Speed:
Default 2m/s (max. 3m/s)
Onboard Computer(optional):
Support Secondary Development Of Image Processing, Video Analysis, Edge Computing Al Algorithms
Protection Level:
IP54
Expand Max. Size:
2190*2415*560mm (With Paddle)
Product Description
Drone LOONG F2-10
  • Material:X Carbon Fiber, Aluminum Alloy, Engineering Plastics
  • Wheelbase:706 mm
  • Expand max.size:480*609*208mm (Without paddle)
  • Expand max.size:966*836*208mm (With paddles)
  • Fuselage weigh:2.8kg(Excluding battery and mount)
  • Unladen weight:3.8kg
  • Standard weight:2.5kg
  • Max.load:5kg
  • Endurance:50min@no load, 35min@1kg
    20min@2.5kg,8min@5kg
  • Working temperature:-20°C~60°C
  • Working humidity:10%~90% non-condensing
  • Protection class:lP54
  • Electromagnetic interference:100A/m (Industrial Frequency Magnetic Field)
  • Elevation gain:5000m
  • Max. flight speed:25m/s
  • Battery:14000mAh*1
Remote control
  • Screen:5.5 inches
  • Storage:ROM 16GB + expandable (up to 128G)
  • Video output interface:HDMI
  • Built-in battery:Lithium-ion(4800mAh-7.2V)
  • Charging mode:support 12V/9V/5V
  • Working ambient temperature:-10~60°C
  • Charging time:2.5h (using a 9V USB charger)
  • Charging ambient temperature:0-40°C
  • Rating:20W
  • Endurance:4h
FPV glasses
  • Screen resolution:720P/1080P
  • Support customization
  • Screen material:LCD
  • Power input:7-26V(2-6s)
  • Video input interface:micro-HDMI
Chargers
  • Specification:dual 6s charger, input AC 100V-240V,AC 200W
  • Use of working temperature:0~40°C
  • Dimension:135*105*68mm
  • Weight:580g
Flight battery
  • Battery string number:6s
  • Full charge voltage:25.8V
  • Nominal voltage:20.88V
  • Minimum voltage:15.6V
  • Nominal capacity:13.8Ah
  • Typical capacity:14.3Ah
  • Standard charge:7A
  • Standard discharge:42A
  • Instantaneous discharge:98A
  • Weight:942g±10g
