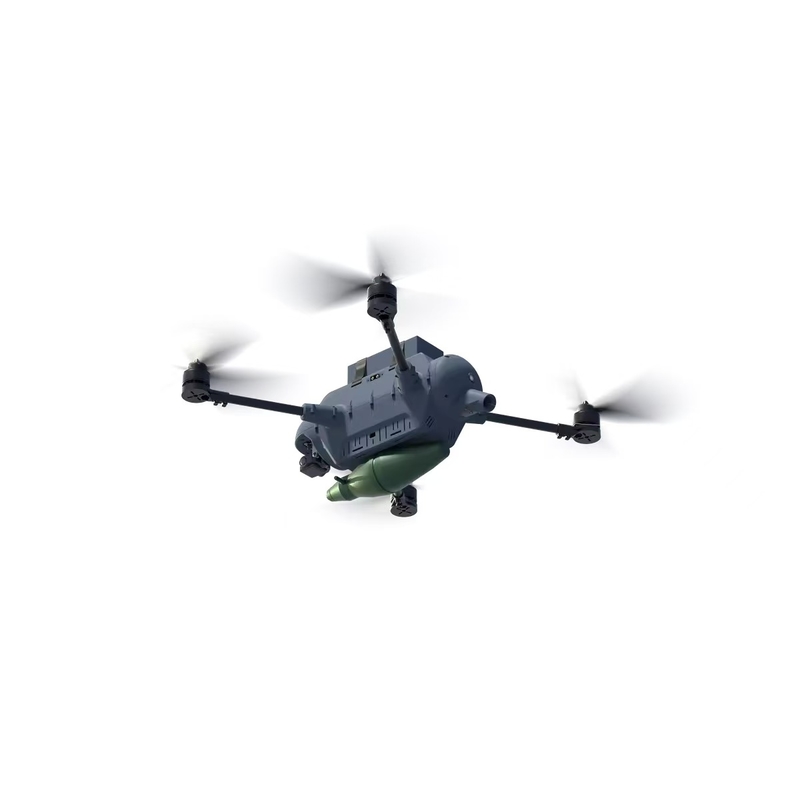

LOONG F2-10 Heavy-Lift Drone 15kg Payload Carbon Fiber Frame
LOONG F2-10 Heavy-Lift Drone 15kg Payload Carbon Fiber Frame
LOONG F2-10 Heavy-Lift Drone 15kg Payload Carbon Fiber Frame

LOONG F2-10 Heavy-Lift Drone 15kg Payload Carbon Fiber Frame

Product Details

Brand Name: MMC

Certification: ROHS

Model Number: Fiber Optic Combat UAV LOONG F2-10

Document: LOONG F2-10 Over-the-horizo...em.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 20000pcs/Mouth

Get Best Price

Product Details

Product Description
Product Details
Highlight:

industrial FPV drone kit with 15kg load

,

carbon fiber FPV drone kit

,

magnesium alloy industrial drone kit

Max. Load:
15kg
Max. Climbing Speed:
Default 3m/s (max. 5m/s)
Working Humidity:
10%~90% Non-condensing
Wheelbases:
1750mm
Main Material:
Carbon Fiber+Magnesium Aluminum Alloy+Plastid
Police PrivateNetwork (optional):
The UAV Is Equipped With A Function Module For Accessing The Private Network (police Unmanned Aerial Vehicle Frequency Band). It Supports Real-time Control Of The UAV And Its Mounting And Real-time Video Transmission Back To The Backstage Command Center Un
Body Weight:
13kg (Without Battery And Payload)
Protection Level:
IP54
Max. Load:
15kg
Max. Climbing Speed:
Default 3m/s (max. 5m/s)
Working Humidity:
10%~90% Non-condensing
Wheelbases:
1750mm
Main Material:
Carbon Fiber+Magnesium Aluminum Alloy+Plastid
Police PrivateNetwork (optional):
The UAV Is Equipped With A Function Module For Accessing The Private Network (police Unmanned Aerial Vehicle Frequency Band). It Supports Real-time Control Of The UAV And Its Mounting And Real-time Video Transmission Back To The Backstage Command Center Un
Body Weight:
13kg (Without Battery And Payload)
Protection Level:
IP54
Product Description
Drone LOONG F2-10
  • Material: X Carbon Fiber, Aluminum Alloy, Engineering Plastics
  • Wheelbase: 706 mm
  • Expand max.size: 480*609*208mm (Without paddle)
  • Expand max.size: 966*836*208mm (With paddles)
  • Fuselage weigh: 2.8kg(Excluding battery and mount)
  • Unladen weight: 3.8kg
  • Standard weight: 2.5kg
  • Max.load: 5kg
  • Endurance: 50min@no load, 35min@1kg
    20min@2.5kg,8min@5kg
  • Working temperature: -20°C~60°C
  • Working humidity: 10%~90% non-condensing
  • Protection class: lP54
  • Electromagnetic interference: 100A/m (Industrial Frequency Magnetic Field)
  • Elevation gain: 5000m
  • Max. flight speed: 25m/s
  • Battery: 14000mAh*1
Remote control
  • Screen: 5.5 inches
  • Storage: ROM 16GB + expandable (up to 128G)
  • Video output interface: HDMI
  • Built-in battery: Lithium-ion(4800mAh-7.2V)
  • Charging mode: support 12V/9V/5V
  • Working ambient temperature: -10~60°C
  • Charging time: 2.5h (using a 9V USB charger)
  • Charging ambient temperature: 0-40°C
  • Rating: 20W
  • Endurance: 4h
FPV glasses
  • Screen resolution: 720P/1080P
  • Support customization
  • Screen material: LCD
  • Power input: 7-26V(2-6s)
  • Video input interface: micro-HDMI
Chargers
  • Specification: dual 6s charger, input AC 100V-240V,AC 200W
  • Use of working temperature: 0~40°C
  • Dimension: 135*105*68mm
  • Weight: 580g
Flight battery
  • Battery string number: 6s
  • Full charge voltage: 25.8V
  • Nominal voltage: 20.88V
  • Minimum voltage: 15.6V
  • Nominal capacity: 13.8Ah
  • Typical capacity: 14.3Ah
  • Standard charge: 7A
  • Standard discharge: 42A
  • Instantaneous discharge: 98A
  • Weight: 942g±10g
