Home > products > FPV Drone Kit > Carbon Fiber Hexacopter Drone Kit with 10kg Payload

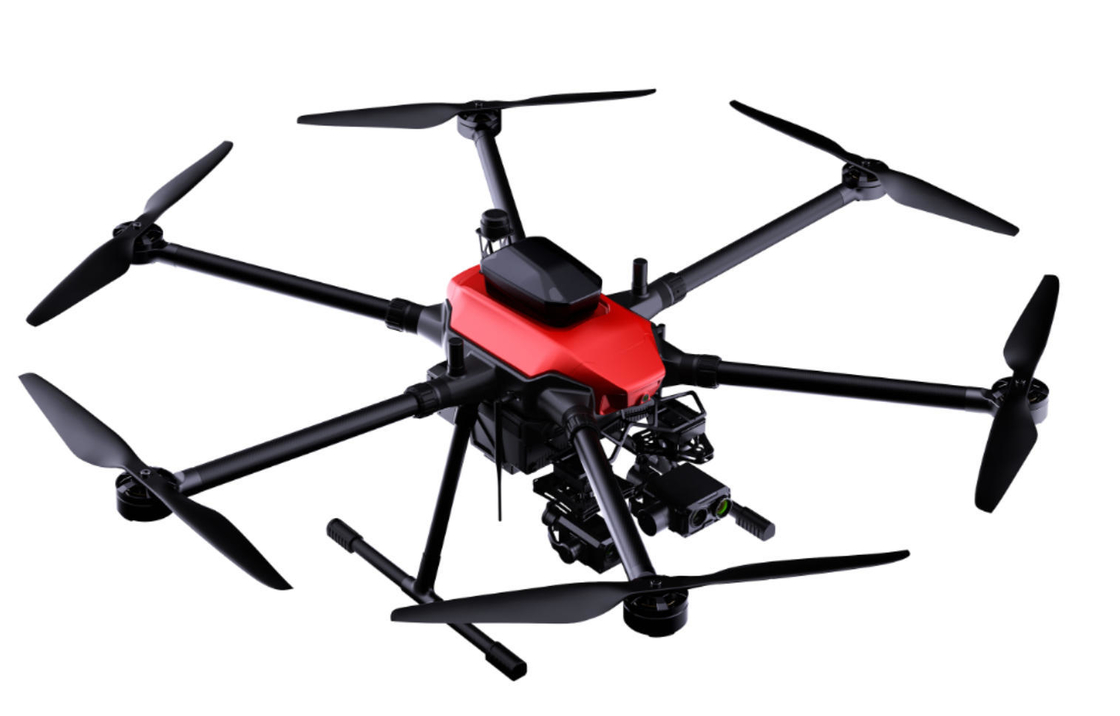

Carbon Fiber Hexacopter Drone Kit with 10kg Payload
Carbon Fiber Hexacopter Drone Kit with 10kg Payload
Carbon Fiber Hexacopter Drone Kit with 10kg Payload
Carbon Fiber Hexacopter Drone Kit with 10kg Payload

Carbon Fiber Hexacopter Drone Kit with 10kg Payload

Product Details

Place of Origin: SHENZHEN

Brand Name: FOVA

Certification: ROHS

Model Number: Fiber Optic Combat UAV LOONG F2-10

Document: FOVA_Drone Product Brochure...re.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 20000pcs/Mouth

Get Best Price

Product Details

Product Description
Product Details
Highlight:

carbon fiber hexacopter drone kit

,

FPV drone with 10kg payload

,

heavy lift hexacopter drone kit

Frame:
Carbon Fiber
Endurance:
50-150min
Charging Time:
3 Hours
Battery:
14000mAh*1
Protection Class:
LP54
Unload Weight:
3.8kg
Wheelbase:
372-1650mm
Standard Weight:
2.5kg
Frame:
Carbon Fiber
Endurance:
50-150min
Charging Time:
3 Hours
Battery:
14000mAh*1
Protection Class:
LP54
Unload Weight:
3.8kg
Wheelbase:
372-1650mm
Standard Weight:
2.5kg
Product Description
Carbon Fiber Hexacopter Drone Kit with 10kg Payload
Key Specifications
Attribute Value
Frame Carbon Fiber
Endurance 50-150min
Charging Time 3 Hours
Battery 14000mAh*1
Protection Class LP54
Unload weight 3.8kg
Wheelbase 372-1650mm
Standard weight 2.5kg
Product Overview
FOVA SkylleⅡ Hexacopter Drone with 10kg payload capacity

The FOVA SkylleⅡ is a professional-grade hexacopter drone platform featuring a 10kg payload capacity and 80-minute endurance. Built with aerospace-grade carbon fiber unibody construction, it delivers exceptional durability for demanding operational environments.

Advanced Features
  • Quick-detachable arm and tripod design for rapid deployment
  • Integrated modular main board avionics with multiple interfaces
  • Compatible with various peripherals including 4G/5G, RTK, and onboard computers
  • Dual backup intelligent battery system for enhanced safety
  • Standardized payload mounting interfaces for industry applications
Technical Specifications
Main material:
Carbon fiber + Magnesium aluminum alloy + Plastid
Wheelbases:
1650mm
Fuselage Box Size:
820*750*590mm
Working Temperature:
-20°C to 60℃
Max. Load:
10kg
Max. Flight Speed:
18m/s
Max. Wind Resistance:
12m/s (Level 6)
Smart Battery:
22000mAh*2
Endurance Performance

80min@no load / 60min@1kg / 55min@3kg / 48min@5kg / 40min@8kg / 36min@10kg

Optional Features
  • 4G/5G Communication: Enables public network control, real-time video transmission, and cloud synchronization of avionics health status
  • Police Private Network: Supports private network operation (1430MHz~1445MHz) with real-time control and video transmission
  • ADS-B Module: Acquires and transmits civil aviation information in real-time via UAVCAN
  • Onboard Computer: Supports secondary development for image processing, video analysis, and edge computing AI algorithms
