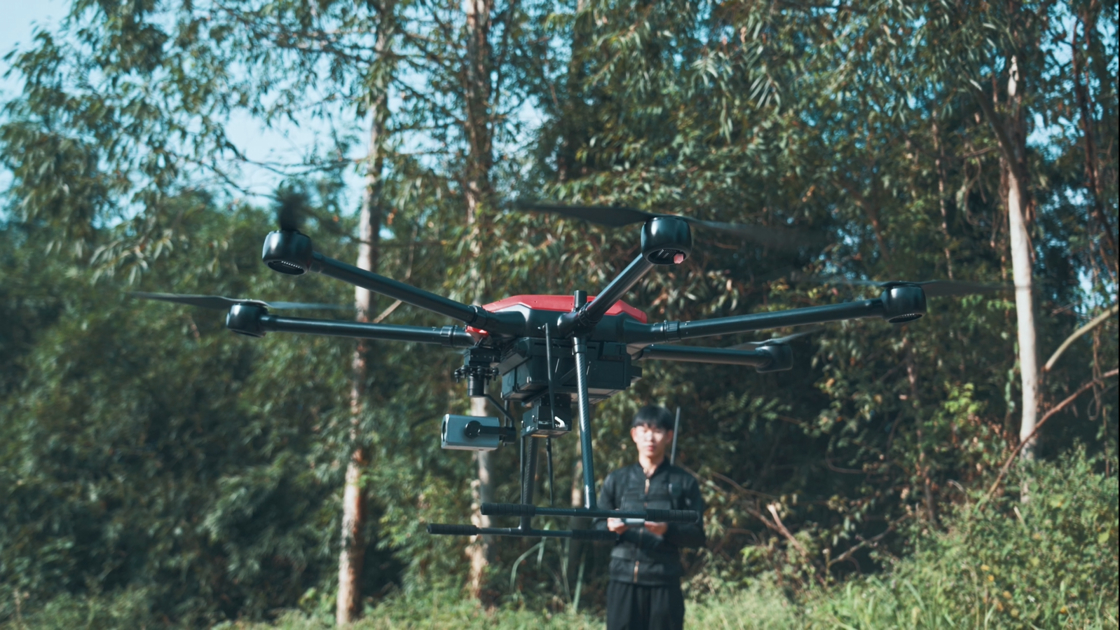

SKYLLE II Hexacopter Drone with 15kg Payload and 61min Flight Time

Name: SKYLLE II Hexacopter Drone with 15kg Payload and 61min Flight Time
Brand: Shenzhen FOVA Technology Co.,Ltd
SKU: Fiber Optic Combat UAV LOONG F2-10
Price: 180.00 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: FOVA

Certification: ROHS

Model Number: Fiber Optic Combat UAV LOONG F2-10

Document: FOVA_Drone Product Brochure...re.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 20000pcs/Mouth

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                SKYLLE II hexacopter drone with 15kg payload, FPV drone kit with 61min flight time, heavy-lift hexacopter drone with warranty


Camera:	HD Camera	Wheelbase:	372-1650mm
Fuselage Weigh:	2.8kg(Excluding Battery And Mount)	Max.load:	5-20kg
Electromagnetic Interference:	100A/m (Industrial Frequency Magnetic Field)	Unload Weight:	3.8kg
Max. Flight Speed:	25m/s	Charging Time:	3 Hours

Camera:	HD Camera
Wheelbase:	372-1650mm
Fuselage Weigh:	2.8kg(Excluding Battery And Mount)
Max.load:	5-20kg
Electromagnetic Interference:	100A/m (Industrial Frequency Magnetic Field)
Unload Weight:	3.8kg
Max. Flight Speed:	25m/s
Charging Time:	3 Hours

Product Description

Multirotor drones: SKYLLE II hexacopter lifts 10kg for 80 minutes, built for any professional challenge

Key Specifications

Camera	HD Camera
Wheelbase	372-1650mm
Fuselage weight	2.8kg (Excluding Battery And Mount)
Max load	5-20kg
Electromagnetic interference	100A/m (Industrial Frequency Magnetic Field)
Unload weight	3.8kg
Max. flight speed	25m/s
Charging Time	3 Hours

Product Overview

The SKYLLE II-P is a high-performance hexacopter drone platform featuring a 15kg payload capacity and 61-minute endurance. Designed for professional applications, it combines aerospace-grade carbon fiber construction with advanced modular systems for versatile operation in demanding environments.

Technical Parameters

Main material	Carbon fiber + Magnesium aluminum alloy + Plastid	Encryption Method	AES256
Wheelbases	1750mm	Mapping Distance	20km
Fuselage Box Size	820750590mm	Working Temperature	-20°C-60℃
Arm Box Size	800630380mm	Working Humidity	10%~90% non-condensing
Expand Max. Size (Without paddle)	23402580720mm	Protection level	IP54
Expand Max. Size (With paddle)	21902415560mm	Interference	100A/m (industrial magnetic field)
Body Weight	13kg (Without battery and payload)	Altitude Limit	5000m
Unladen Weight	22.5kg	Cruise Speed	0~15m/s
Max. Load	15kg	Max. Flight Speed	20m/s
Automatic obstacle avoidance	360° omnidirectional obstacle avoidance (horizontal)	Max. Climbing Speed	Default 3m/s (max. 5m/s)
Max. Wind Resistance	12m/s (Level 6)	Max. Descent Speed	Default 2m/s (max. 3m/s)
Mapping Frequency	2.4GHz	Smart Battery	22000mAh*2

Endurance:

61min@no load / 45min@3kg / 40min@5kg / 30min@10kg / 25min@15kg

Advanced Features

4G/5G communication: Public network link for UAV control, real-time video transmission, and system health monitoring to cloud and ground station software.
Police Private Network: Supports private network access (police UAV frequency band) for secure operations with real-time control and video transmission.
ADS-B Module: Real-time civil aviation information acquisition and transmission via UAVCAN.
Onboard Computer: Supports secondary development for image processing, video analysis, and edge computing AI algorithms.

Design Features

The SKYLLE II-P features aerospace carbon fiber unibody construction for harsh environments, quick-detachable arms and kickstand for rapid deployment, and modular avionics with multiple interfaces for peripheral compatibility including RTK, dual-channel mapping, and onboard computers.
