LOONG F2-10 Heavy-Lift Drone with 10kg Payload & 80-Min Flight
LOONG F2-10 Heavy-Lift Drone with 10kg Payload & 80-Min Flight
LOONG F2-10 Heavy-Lift Drone with 10kg Payload & 80-Min Flight

LOONG F2-10 Heavy-Lift Drone with 10kg Payload & 80-Min Flight

Product Details

Brand Name: MMC

Certification: ROHS

Model Number: Fiber Optic Combat UAV LOONG F2-10

Document: LOONG F2-10 Over-the-horizo...em.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Delivery Time: 30

Payment Terms: T/T

Supply Ability: 20000pcs/Mouth

Get Best Price

Product Details

Product Description
Product Details
Highlight:

FPV drone kit with 22.5kg payload

,

FPV drone kit for extreme temperatures

,

heavy-duty FPV drone kit

Onboard Computer(optional):
Support Secondary Development Of Image Processing, Video Analysis, Edge Computing Al Algorithms
Altitude Limit:
5000m
Max. Descent Speed:
Default 2m/s (max. 3m/s)
Protection Level:
IP54
Max. Wind Resistance:
12m/s (Level 6)
Working Temperature:
-20°C-60℃
Cruise Speed:
0~15m/s
Unladen Weight:
22.5kg
Onboard Computer(optional):
Support Secondary Development Of Image Processing, Video Analysis, Edge Computing Al Algorithms
Altitude Limit:
5000m
Max. Descent Speed:
Default 2m/s (max. 3m/s)
Protection Level:
IP54
Max. Wind Resistance:
12m/s (Level 6)
Working Temperature:
-20°C-60℃
Cruise Speed:
0~15m/s
Unladen Weight:
22.5kg
Product Description

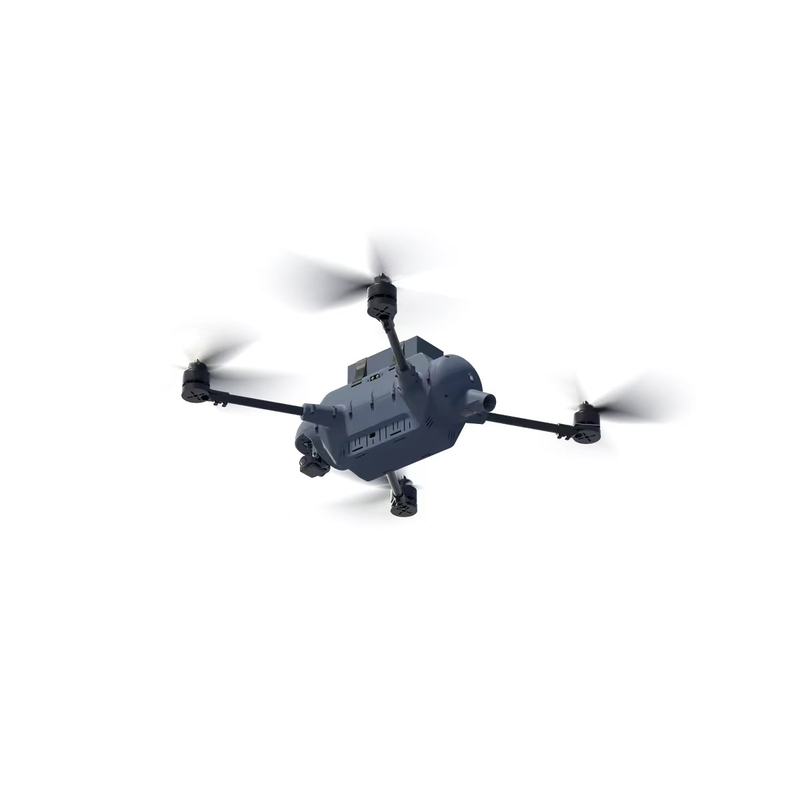

Drone LOONG F2-10
LOONG F2-10 Heavy-Lift Drone with 10kg Payload & 80-Min Flight 0 LOONG F2-10 Heavy-Lift Drone with 10kg Payload & 80-Min Flight 1
  • Material: X Carbon Fiber, Aluminum Alloy, Engineering Plastics
  • Wheelbase: 706 mm
  • Expand max.size: 480*609*208mm (Without paddle)
  • Expand max.size:966*836*208mm (With paddles)
  • Fuselage weigh: 2.8kg(Excluding battery and mount)
  • Unladen weight: 3.8kg
  • Standard weight: 2.5kg
  • Max.load:5kg
  • Endurance:50min@no load, 35min@1kg
  • 20min@2.5kg,8min@5kg
  • Working temperature: -20°C~60°C
  • Working humidity: 10%~90% non-condensing
  • Protection class: lP54
  • Electromagnetic interference: 100A/m (Industrial Frequency Magnetic Field)
  • Elevation gain:5000m
  • Max. flight speed: 25m/s
  • Battery:14000mAh*1
Remote control
  • Screen: 5.5 inches
  • Storage: ROM 16GB + expandable (up to 128G)
  • Video output interface: HDMI
  • Built-in battery: Lithium-ion(4800mAh-7.2V)
  • Charging mode: support 12V/9V/5V
  • Working ambient temperature: -10~60°C
  • Charging time: 2.5h (using a 9V USB charger)
  • Charging ambient temperature: 0-40°C
  • Rating: 20W
  • Endurance: 4h
FPV glasses
  • Screen resolution: 720P/1080P
  • Support customization
  • Screen material: LCD
  • Power input: 7-26V(2-6s)
  • Video input interface: micro-HDMI
Chargers
  • Specification: dual 6s charger, input AC 100V-240V,AC 200W
  • Use of working temperature: 0~40°C
  • Dimension: 135*105*68mm
  • Weight: 580g
Flight battery
  • Battery string number: 6s
  • Full charge voltage: 25.8V
  • Nominal voltage: 20.88V
  • Minimum voltage: 15.6V
  • Nominal capacity: 13.8Ah
  • Typical capacity: 14.3Ah
  • Standard charge: 7A
  • Standard discharge: 42A
  • Instantaneous discharge: 98A
  • Weight: 942g±10g
